Developer Feature Article
Developing for Microsoft Exchange 2000 Server and the Web Storage System
Programming Collaborative Web Applications with Microsoft Exchange 2000 Server
By Scott Mauvais

With the release of Microsoft Exchange Server 2000, Microsoft� has created a true development platform for designing messaging and collaboration applications. Exchange, a development platform? If you are like most developers, you have probably viewed Microsoft Exchange as more of an infrastructure product than as a development platform. Sure, you could always build input forms with Exchange Forms, but Exchange is more about mail and schedules than application development, right? Of course not.

While it has always been a great development environment, Microsoft Exchange Server has been overshadowed by Microsoft SQL Server� and the Microsoft Visual Studio� tools when developers thought about creating applications. With the release of Microsoft Exchange Server 2000, this all changes. Microsoft Exchange Server (originally left off the Windows� DNA platform) not only is a full member of the .NET Enterprise Server family, but also  is the first Microsoft product that sports the new developer-friendly Web Storage System.

In this month's article, I will give you a brief tour of the Microsoft Exchange Server 2000 development environment and show you how the Web Storage System will change the way you think about storing data. Next I will give you a hint of some of the things you can expect from the Web Storage System when Microsoft Microsoft SharePoint�Portal Server ships (previously code-named "Tahoe").  For great tips on handling Exchange 2000 Server disaster recovery, see Ian Matthews's IT feature this month, Exchange 2000 Server Disaster Recovery: Worst-Case Survival Handbook.

I will conclude with a list of references with which you can learn more about developing collaborative applications for Microsoft Exchange Server 2000 in general and the Web Storage System in particular. The most comprehensive source available is a new book from Microsoft Press called Programming Collaborative Web Applications with Microsoft Exchange 2000 Server by Mindy Martin. My goal in this article is to give you a brief overview of some of the technology and get you oriented as you dive into Exchange development. If you really want (or need) to ramp up quickly, you should get Mindy's book.

The Exchange Development Environment
If you have never developed for Exchange, you can look at this development environment as taking the best from database, Web, and collaboration toolsets and rolling them all together in a single server product.

The first thing to notice about this release is that Microsoft has fully integrated the Active Directory� into the Exchange Server product. This not only adds value to your hard-won ADSI programming skills, but also greatly simplifies account management. In the Microsoft Windows NT� 4.0 and Microsoft Exchange Server 5.5 world, you needed to update both the Exchange Directory and the NT SAM if you wanted to create a new user or change some attributes about him or her. Updates became even more complicated when you wanted to schedule a meeting and needed to check a user's free/busy status first. Just imagine what this was like in a multimaster domain model with several Exchange servers spread out on different sites.

With each new release, Microsoft Exchange Server supports more and more communication protocols. In the current release, almost every collaboration-related protocol you can think of is included: HTTP, WebDAV, SMTP, NNTP, IMAP, POP, LDAP, and our old friend MAPI. So no matter what system you need to connect to, Microsoft Exchange Server 2000 probably can connect to it.

The Web Storage System
On top of this, you gain access to Microsoft's new, super-cool Web Storage System. If you have not read up on the Web Storage System, I highly recommend you check out Sean McCormick's article in the July 2000 issue of MSDN Magazine entitled Exchange 2000: Web Storage System, Workflow Tools, and CDO Turbocharge Collaboration Apps.

The Web Storage System is similar to the information store in earlier versions of Microsoft Exchange Server. Like the information store, the Web Storage System is broken down into public stores and private, mailbox stores. Now rather than being built on top of databases based on a variant of the JET engine, the stores in Microsoft Exchange Server 2000 are built on the Web Storage System. The Web Storage System is hierarchical in nature, being made up of folders that contain either items or subfolders. Conceptually, it is like the typical file system with directories, files, and subdirectories.

The Web Storage System's real power comes from the types of data it can store and the ways in which you can access the data. Not only can the Web Storage System keep almost every type of data you can imagine, such as traditional Exchange items (mail message, contacts, calendar items, Tasks, and so on), but also it can hold media files, office documents, and ASP files, just to name a few. In addition to simply storing the data, the Web Storage System integrates the content with the associated metadata.

Because the Web Storage System holds all sorts of documents, this metadata can cover the gamut from obvious things such as name of the item, its size, and its last update time to resource-specific properties such as author, word count, and total edit time for a Microsoft Word document. You can even include custom properties that you have designed specifically for your application. The Web Storage System then lets you search across all these properties and marry a property-based search with a full text search of the content. In short, you can look at it as the object file system of the Cairo vision. Note that Cairo never shipped.  It was originally the code-name for the release of Windows NT after version 3.5x, but priorities changed and Windows NT 4.0 shipped instead. Most of the Cairo feature set made it into Windows 2000.

After you have stored all this disparate data, you probably want to retrieve it somehow. You can retrieve data from the Web Storage System using whichever access method you like best. If you are a database programmer, you might choose ActiveX Data Objects (ADO). Microsoft Exchange Server 2000 installs a new OLEDB provider named ExOLEDB that extends OLEDB in much the same way that OLEDB for OLAP extended the original OLEDB to provide access to multidimensional data stores. In this case, ExOLEDB provides native access to the folders, items, and files in the Web Storage System. Conversely, if you are an old-time exchange developer, you might gravitate toward the Collaborative Data Objects (CDO) model. Interestingly, CDO has been rewritten and now sits on top of ExOLEDB. Finally, if you are a Web developer, you might feel more comfortable with the open Web Distributed Authoring and Versioning (WebDAV) protocol. While each method has its strengths (for example, querying and navigating for ADO and sending messages for CDO), you will find a great deal of overlap among access methods so that you can choose the one you like best.

As an example, imagine you wanted to query the Web Storage System for all items with a specific property value across all types of items. Remember from our discussion earlier that the Web Storage System integrates content with the metadata so that you have great flexibility in your search criteria. To give you an idea of how you go about doing this, I have included some code from the sample application in Mindy Martin's Programming Collaborative Web Applications with Microsoft Exchange 2000 Server. Her sample application is a zoo management system, and this snippet demonstrates how you would use ADO to locate all the items that referred to the �Divine Roostrus� species.

Listing 1.1: Query a Web Storage System for All Resources with a Specific Custom Property Value

Sub SearchForCustomProperty()
   ' Look through all of the folders
   ' in a Web Storage System
   ' for resources with a specific
   ' custom property value.

   Dim cnn As ADODB.Connection
   Dim rst As ADODB.Recordset
   Dim urlQueryFld As String
   Dim strSQL As String

   ' Build the URL string
   urlQueryFld = file://./backofficestorage/domain.com/ _
      & "Applications/Zoo Management/"

   ' Open a connection to the Applications WSS
   Set cnn = New ADODB.Connection
   With cnn

      .Provider = "exoledb.datasource"
      .Open urlQueryFld
   End With

   ' Build the SQL statement
   strSQL = _
      "SELECT " & AddQuotes("DAV:displayname") & _
      ", " & AddQuotes("DAV:href")
   strSQL = strSQL & _
      " FROM SCOPE('deep traversal of " & _
      AddQuotes(urlQueryFld) & "')"
   strSQL = strSQL & _
      " WHERE " & _
      AddQuotes("zoomgt:species") & "= 'Divine Roostrus'"
   strSQL = strSQL & _
      " ORDER BY " & AddQuotes("DAV:displayname") & " DESC"

   Set rst = New Recordset
   With rst
      .Open strSQL, cnn
   End With

   ' Return the names of the resources and their URLs
   Do Until rst.EOF
      Debug.Print _
      rst.Fields("DAV:displayname"), rst.Fields("DAV:href")
      rst.MoveNext
   Loop

   rst.Close
   cnn.Close
   Set cnn = Nothing
   Set rst = Nothing
End Sub

I have covered only the most basic aspects of the Web Storage System. To get a thorough understanding of the Web Storage System and how you can build your Web applications around it, read Chapter 2 of Mindy Martin's Programming Collaborative Web Applications with Microsoft Exchange 2000 Server. Actually, I recommend that you read the entire book because the whole thing is full of essential (and hard to find) information about the architecture and schema of the Web Storage System. I expect this to become one of the must-read books for the Web Storage System just as David Chappell's Understanding ActiveX and OLE is a must-read for COM developers.

Microsoft SharePoint Portal Server
Once you have come up to speed on the Web Storage System, you will be ready for Microsoft's upcoming document management and corporate portal product Microsoft SharePoint Portal Server, previously code-named "Tahoe."


While Microsoft Exchange Server 2000 serves as a collaboration platform, SharePoint Portal Server focuses on helping companies manage the information their workers have (collaboratively) produced. Because these tasks are so closely related, the products themselves fit together quite well. From a technology standpoint, both are built on top of the Web Storage Engine. Therefore, when developing applications for Tahoe, you will leverage the same Exchange development skills�ADO, XMLHTTP, and WebDAV�you learned in Mindy Martin's Programming Collaborative Web Applications with Microsoft Exchange 2000 Server.

Microsoft SharePoint Portal Server has a large list of features, but to make things easy (and to make sure I save some space to walk through some sample code!) I will group them together into two large categories: document management and context indexing and search.

Document Management
Microsoft SharePoint Portal Server provides a means of versioning documents and routing them for approval. It builds upon the Web discussion features in Microsoft Office 2000 that allows reviewers and coworkers to add comments to document without affecting the content of the document itself.

Typically, most users will access document management in SharePoint Portal Server via the SharePoint Portal Server Portal that is based on Microsoft Digital Dashboard technology, through Microsoft Office, or through extensions to Microsoft Windows Explorer. However, SharePoint Portal Server also provides COM interfaces to all the underlying objects and functions so that you will be able to develop very robust applications.

Better yet, the SharePoint Portal Server Portal is built with Web Parts and stored in the Web Storage System. Web Parts are chunks of XML and HTML and are script-packaged according to a common specification. Because Microsoft has created a standard Web Parts schema, any application that can consume Web-based content can easily be extended to use (and reuse) Web Parts. As you might expect, you can access Web Parts through WebDAV as well as Microsoft Exchange Server 2000. To speed up your development of Web Parts, Microsoft has created an add-in for Microsoft Visual InterDev�, which you can download as part of the Digital Dashboard Resource Kit (DDRK) 2.01.

Content Indexing and Search
Microsoft SharePoint Portal Server provides full-text indexing based on a SQL-like syntax. To acquire the data in the first place, the search engine itself will crawl several different content stores including SharePoint Portal Server-based Web sites, external Web sites, the Web Storage System, network and local file shares, Microsoft SQL Server databases, and of course Microsoft Exchange stores.

To create applications that use this rich functionality, you simply use the same development tools and approaches you use to build Exchange applications: ADO, XMLHTTP, and WebDAV.

To learn more about SharePoint Portal Server, see the SharePoint Portal Server Home Page. Once there, you will find many resources including white papers, several guides, an evaluation edition, and, at the time of this writing, Beta 2 of the SDK.

Now that you have an idea of what the Web Storage System can do, let's take a look at how you can use it in your applications.

Building a Simple Inbox with WebDAV
In this section, I will show you how to create a very simple WebDAV application that will list the items in your Inbox or any other folder in Microsoft Exchange Server 2000. The purpose here is not to develop fully functional sample code. Rather, I hope to give you a flavor of the development methodology and give you a head start as you learn to develop Web-based applications on Microsoft Exchange Server 2000.

Building this application requires only four steps:

  1. Open a connection to a Microsoft Exchange 2000 Server.

  2. Build a WebDAV XML document that describes the resource you want. In this example, the resource is the list of items in my Inbox.

  3. Connect to a Microsoft Exchange Server 2000, and send this WebDAV XML document.

  4. Retrieve the result into an XML document, apply an XSLT to it, and display the result
While you would normally do this procedure in an HTML or ASP file so that you could display the results in a browser, I will do this as a simple VBScript file because it is easier to focus on the core logic when you don't have HTML tags getting in the way. Also, in the code presented here, I have removed all the variable declarations and error handling. If you want, you can download the fully commented source code from my web site.

The first step in connecting to the Microsoft Exchange Server 2000 resource is pretty straightforward because the Web Storage System provides direct URL access to every folder and item.

�-- Open an HTTP connection
to my Exchange Server
xmlHTTP.open "PROPFIND",
 �http://mspress.microsoft.com/developer/feature/�, _
 False, _
 �scott�, _
 �secret�
I simply call the open method of the Microsoft.xmlHTTP object and pass in the WebDAV command PROPFIND, the URL to my server, a flag for whether I want an asynchronous connection, and finally my credentials. A discussion of the WebDAV commands is out of the scope of this article, but you can find a list of them under WebDAV Protocol Commands on MSDN.

Next, I build the WebDAV document:

'-- Build an XML document to
sDAV = "<?xml version='1.0'?>"
sDAV = sDAV & "<d:propfind xmlns:d='DAV:'>"
sDAV = sDAV & "<d:prop><d:displayname/></d:prop>"
sDAV = sDAV & "<d:prop><d:contentclass/></d:prop>"
sDAV = sDAV & "<d:prop><d:iscollection/></d:prop
sDAV = sDAV & "</d:propfind>"

Here I am telling the Microsoft Exchange Server 2000 that I want it to return three properties: the display name, content class (document type), and whether the item is a collection (folder). As with the WebDAV commands, the WebDAV schema is out of scope. You can find out more about the schema from DAV:Namespace, also on MSDN.

Now that I have the command ready, I need to set a few HTTP headers and send the WebDAV document to the server:

'-- Set my mime
type
xmlHTTP.setRequestHeader "Content-type:", "text/xml"

'-- Set DAV header for search depth
xmlHTTP.setRequestHeader "Depth", "1"

'-- Send request
wscript.echo "Sending request."
xmlHTTP.send (sDAV)


Because I indicated I wanted an asynchronous connection (something one would usually not do in production) the send method call blocks until the server sends back the complete response. Once the call returns, I have my data and I am ready to load the response into an XML document, transform it with a simple XSLT, and output the result.

'--
Load result into DOM
xmlDoc.loadXML (xmlHTTP.responseText)
'-- Load result into DOM
xmlDoc.loadXML (xmlHTTP.responseText)

'-- Load my XSLT
xslMailList.Load ("MailView.xsl")

'-- Output the result
wscript.echo "<h1><center>Inbox for " & USERID & "</h1></center>"
wscript.echo xmlDoc.transformNode(xslMailList)

While I won't walk through it, the download file contains the XLST used to transform the XML returned from Microsoft Exchange Server 2000.

As I mentioned earlier, you would normally run this type of application in a browser. If I had, the result would have looked like Figure 1.

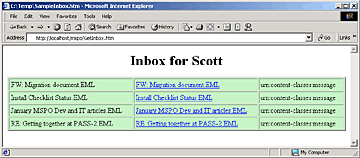

Figure 1: Simple Inbox Built with WebDAV.
Figure 1: Simple Inbox Built with WebDAV.


Conclusion
As we have seen, Exchange provides a robust platform for developing collaborative and messaged-based applications. In this month's article, I started off with an overview of Microsoft Exchange Server 2000 from a developer's perspective. Next we moved on to a discussion of the new (super cool) Web Storage System, and I showed you how you can use it to store many different types of data. From there, I gave you a brief introduction to Microsoft SharePoint Portal Server and showed you how you would be able to reuse your Exchange Server and Web Storage System development skill to create information management applications. Finally, I concluded with a walk-through of some sample code that uses WebDAV and XSLT to connect to a Microsoft Exchange Server 2000 via HTTP and display the contents of a folder.
